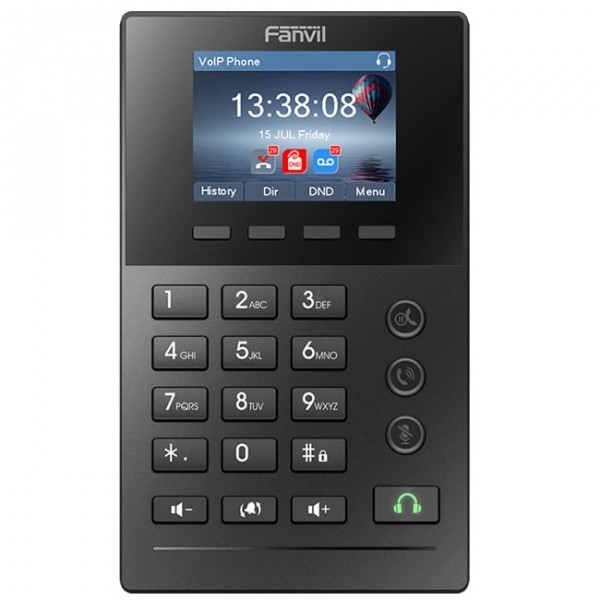

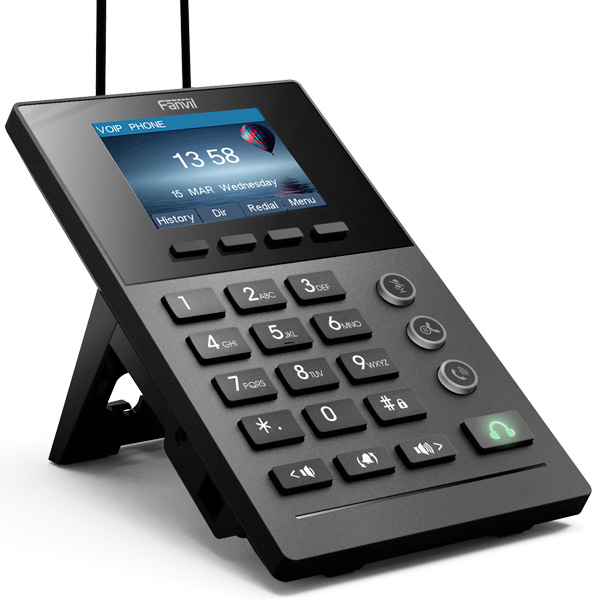

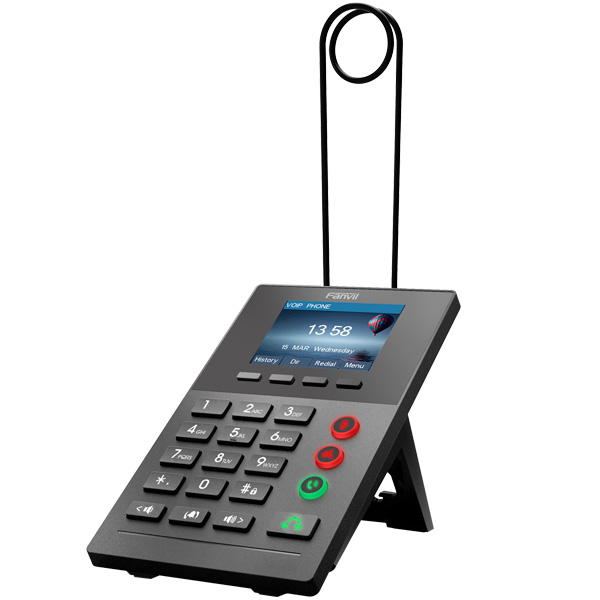

Fanvil X2 - Téléphone IP pour centre d'appel avec écran couleur, 2 lignes SIP PoE, BROADCOM chipset
Chargement...
FICHE TECHNIQUE
SpecificationTo the top
Generic
• 2 SIP Line
• HD Voice
• POE Enable or Optional External Power Supply
• 2.8" color screen

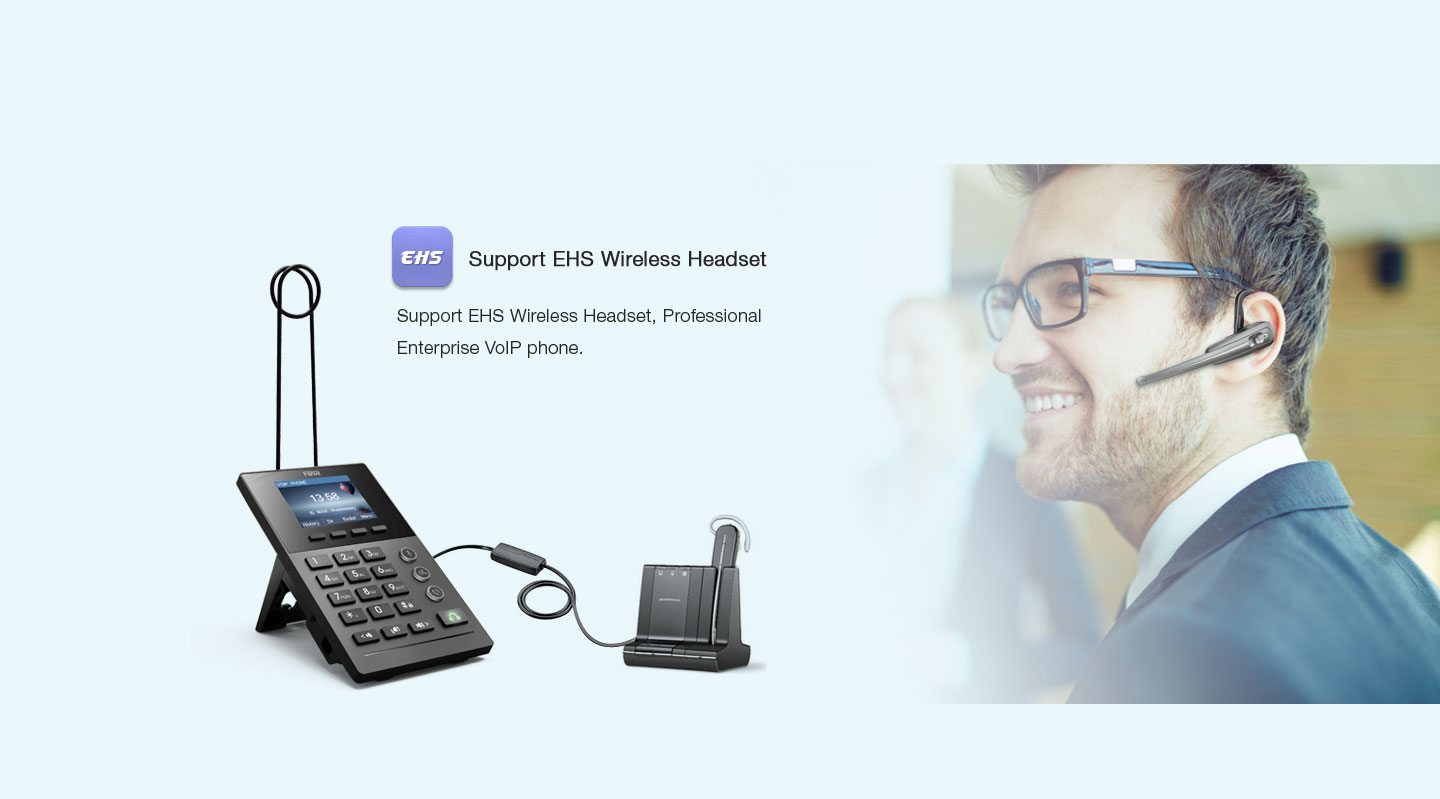

• Headphone(HP) mode (EHS support for Plantronics headsets)
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC
Call Features
• Call out / answer / reject

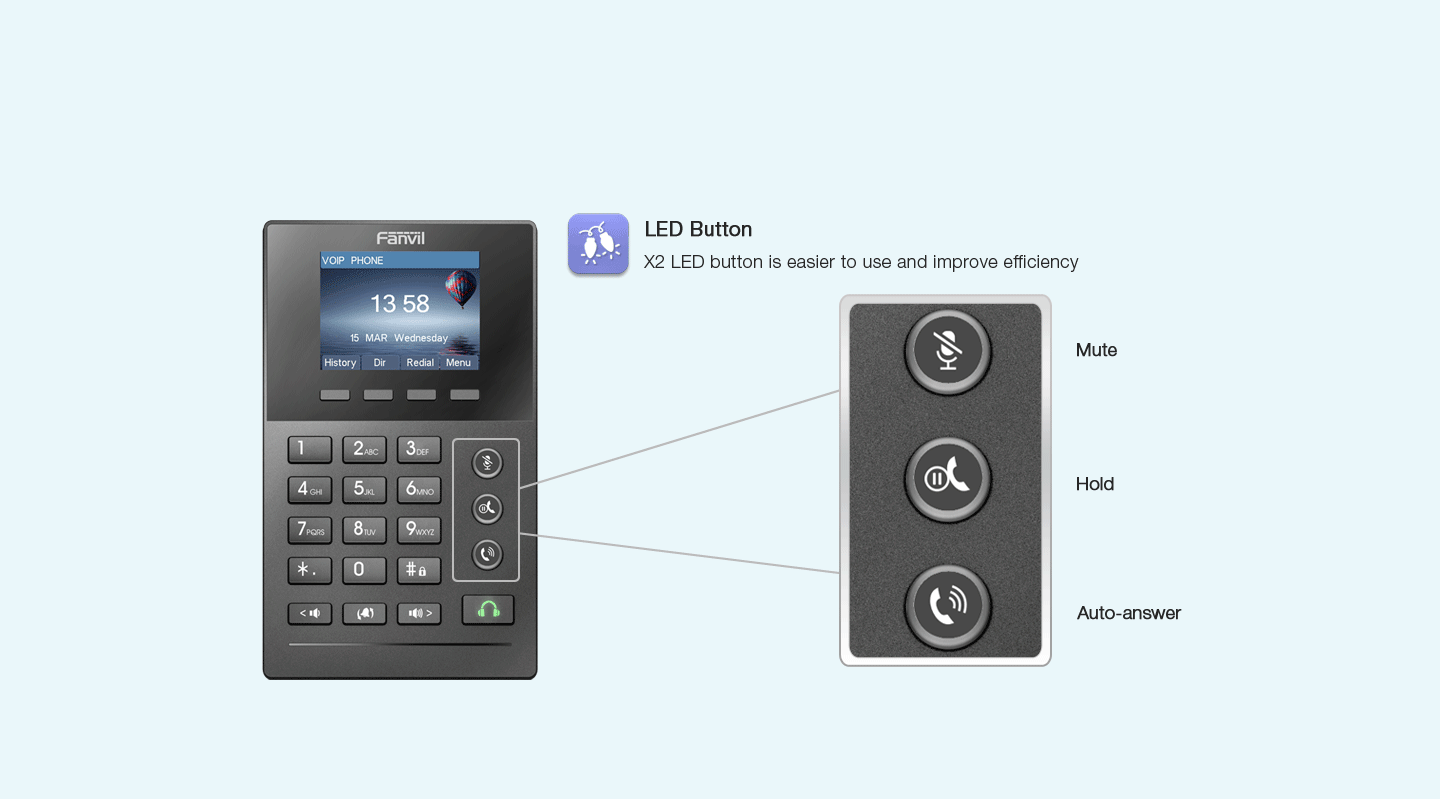

• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer(Attended/Unattended)
• Call Parking / Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking
Phone Features
• Phonebook (500 entries)
• Remote Phonebook (XML/LDAP)
• Call log (100 entries, in/out/missed)
• Black/White List Call Filtering
• Voice Message Waiting Indication (VMWI)
• Programmable Soft keys
• Network Time Synchronization
• Action URL / Active URI
• Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.
Audio
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC: G.722
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
• 10/100Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS
Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069
Deployment & Maintenance
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069

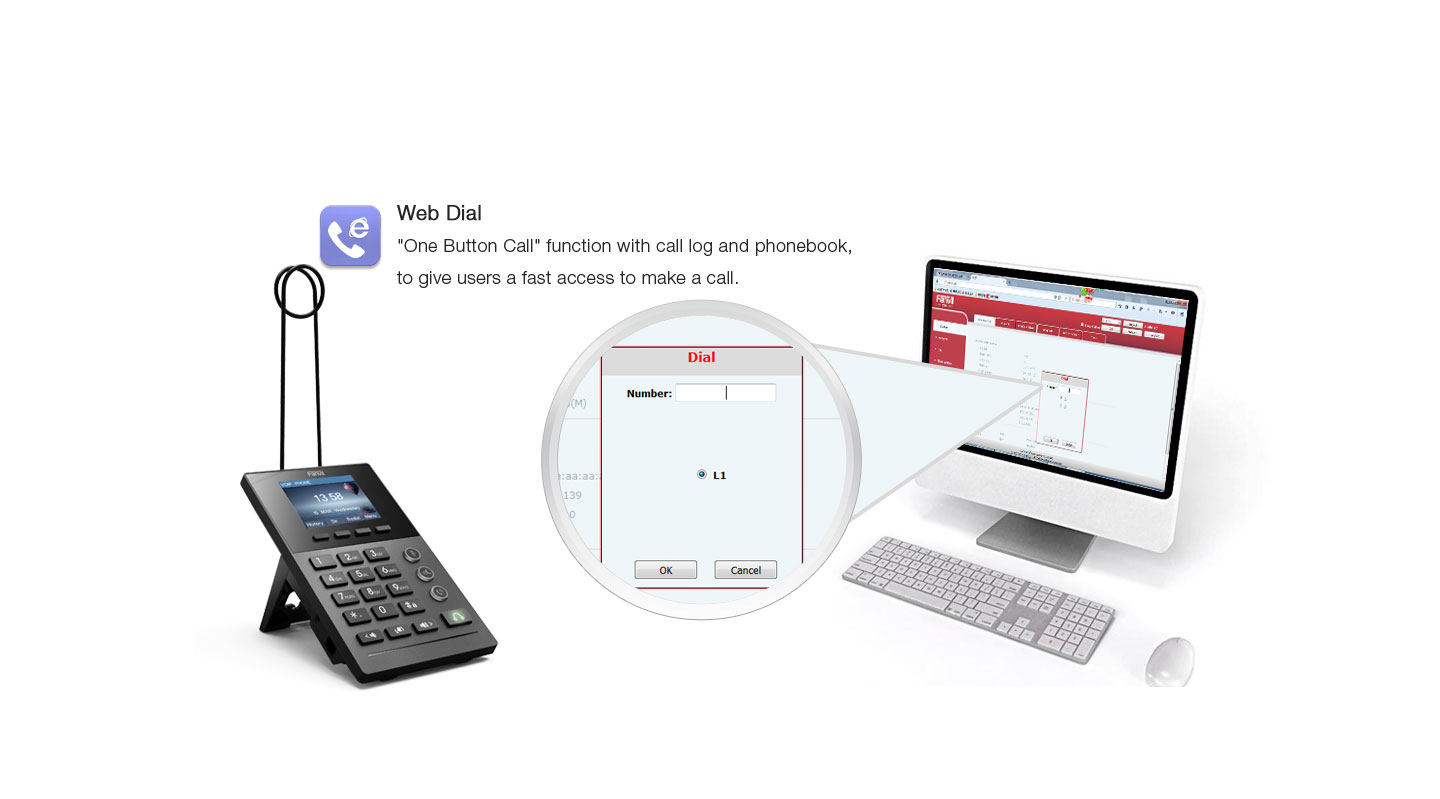

• Web Management Portal
• Web-based Packet-dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• syslog
Physical Specifications

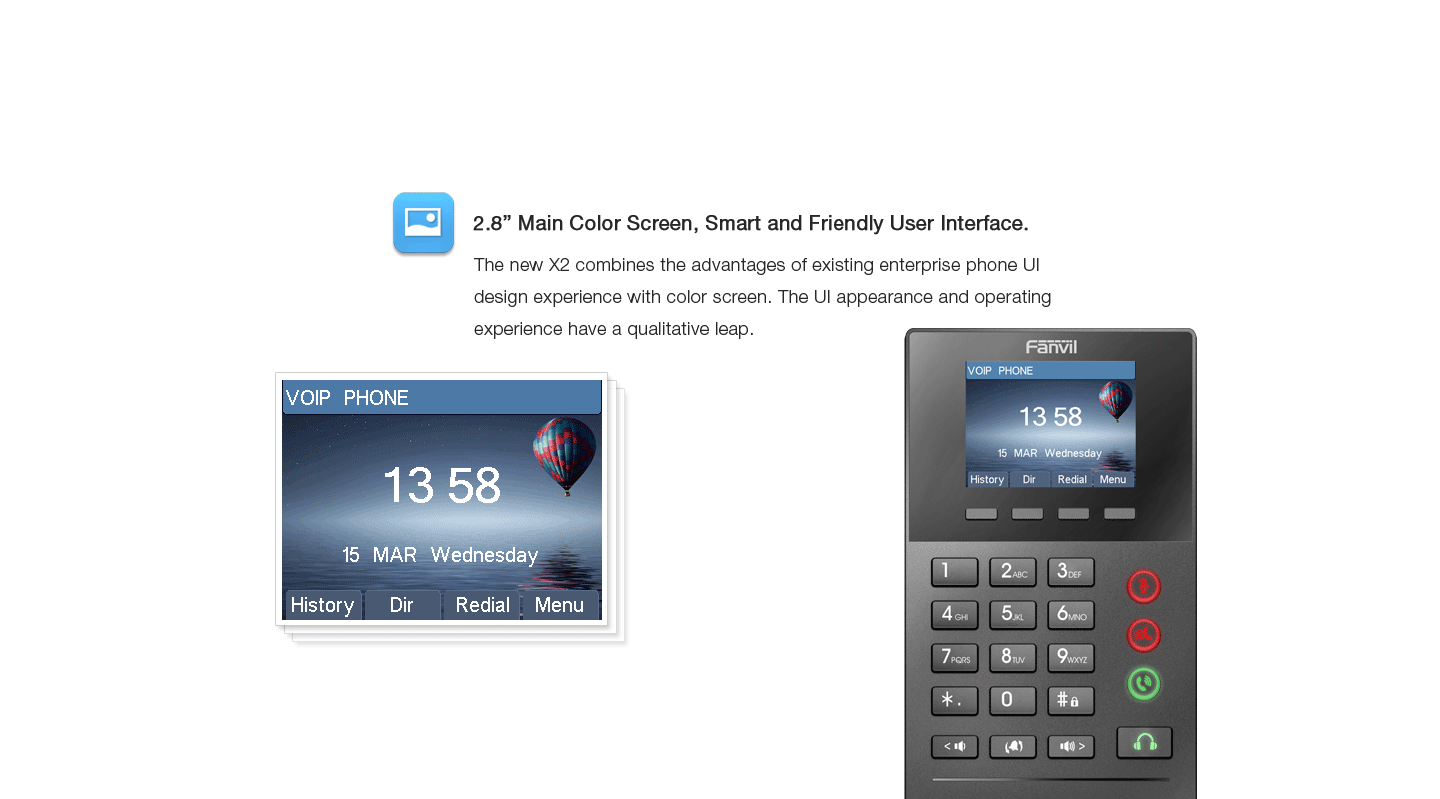

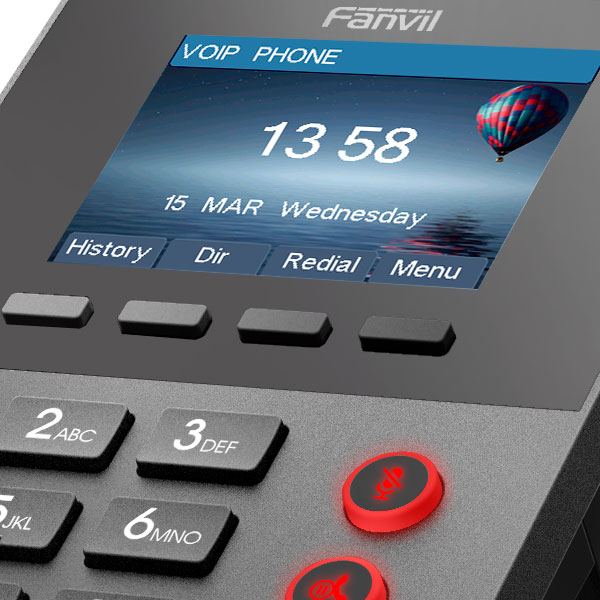

• LCD: 2.8 inch (320x240) color-screen

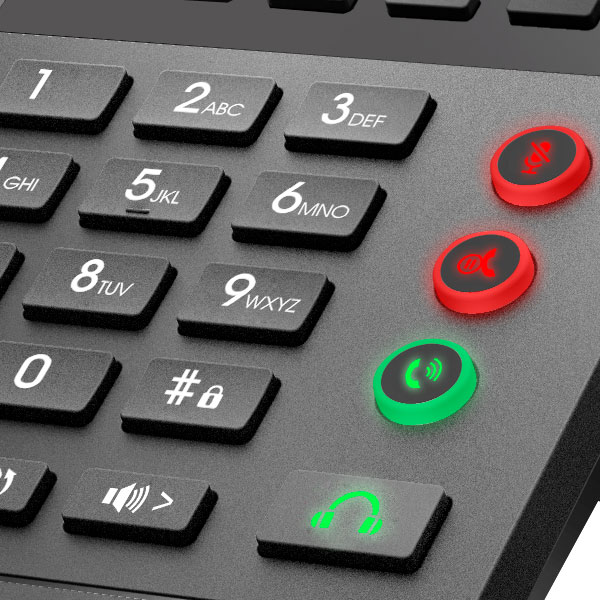

• Keypad: 23 keys, including
4 Soft-keys
3 Function keys
12 Standard Phone Digits keys

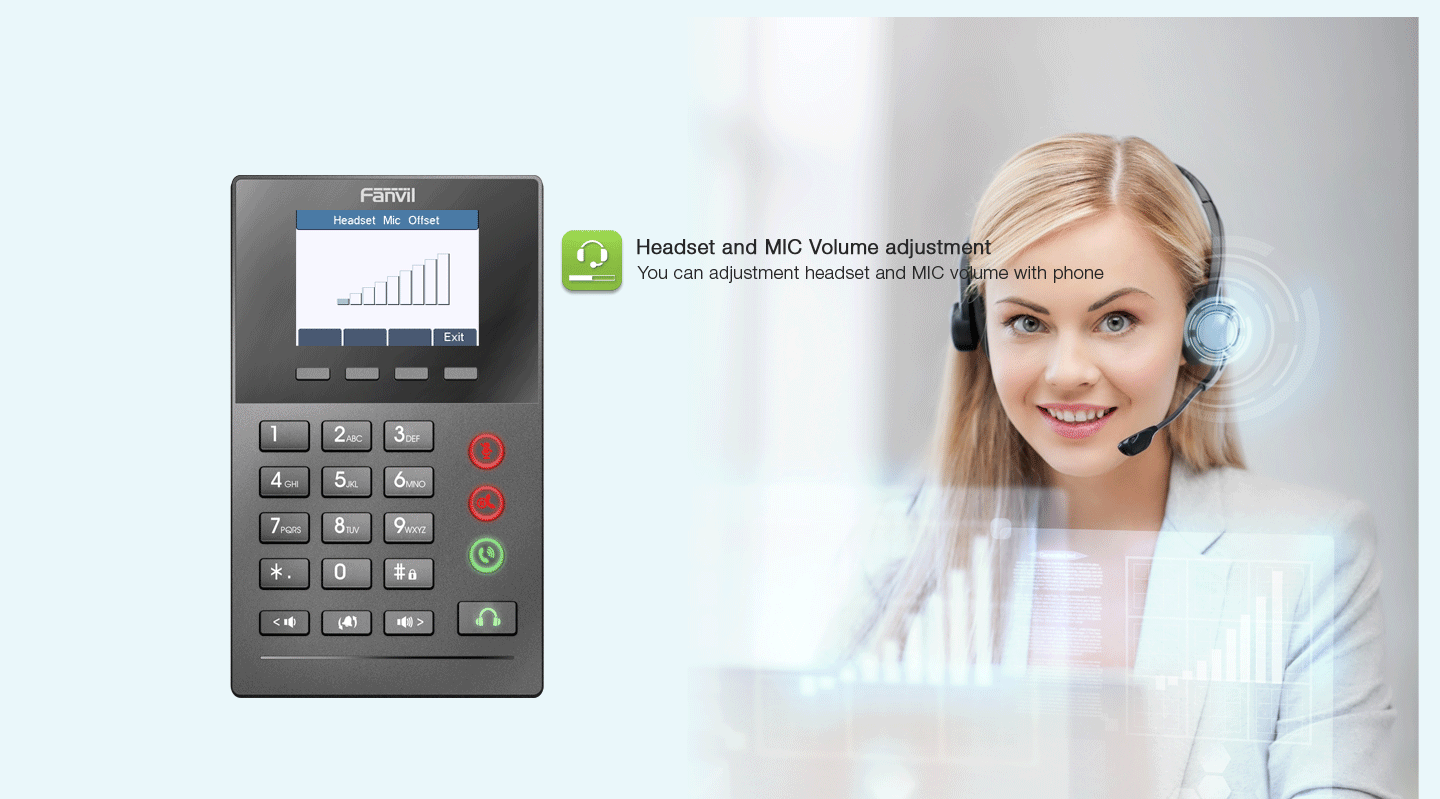

2 Volume Control keys, Lower/Increase(Left/Right)
1 Volume Select key, (Down)
1 Headset key
• 1.5M CAT5 Ethernet Cable x1
• 3.5mm port x2: Headset x1, Foot pedal x1
• RJ9 port x2: Headset x1, Monitor earphone x1
• RJ45 Ethernet Port x2: Network x1 (802.3AF POE Class 1 Enabled),
PC x1 (Bridged to Network)
Main Chipset: Broadcom
• DC Power Input: 5V / 0.6A
• Power Consumption: Idle – 0.9~1.6W, Peak – 1.6~2.5W
• Working Temperature: 0~40℃
• Working Humidity: 10~65%

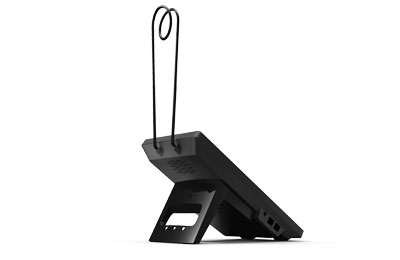

• Back Rack x1: Desktop Stand
• Color: Black
• Gift Box Dimensions: 197x110x62mm (L x W x H)
